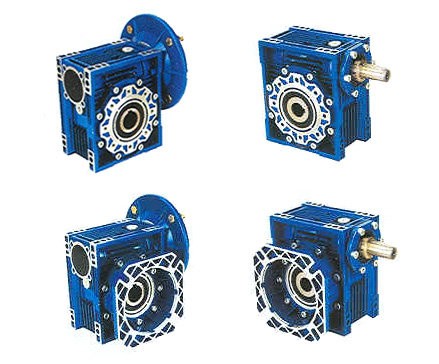

NMRV worm gearboxes are a budget solution with high reliability and load capacity.
The drive power depends on the size and power of the electric motor, which varies in the range from 0.06 to 15 kW. Due to their versatility, NMRV gear motors can be used to replace outdated equipment.
General technical characteristics of NMRV series worm gear motors:
- 11 standard sizes of worm gear motors with power from 0.06 to 15 kW;
- The gear ratio range is from 5 to 100;
- the maximum output torque is 1400 N·m, the permissible radial load is 16500 N
- the housing of worm gear motors of the series up to NMRV 105 standard size is made of aluminum alloy;
- the housing of worm gear motors of 110-200 standard sizes is made of gray cast iron of the G200 brand, processed according to FEM technology;
- The gears of the worm gear are made of bronze alloy GCuSn12 (UNI7013-72);
- worm grinding profile ZI (UNI4760);
- Niemann Quality Control (Fraunhofer Institute for Integrated Circuits);
- patented compact design of the worm gear motor housing;
- The housing of worm gear motors starting from size 030 is painted with blue polyepoxide paint (RAL 5010) in accordance with DIN 1843 standards.
An example of a symbol in an order
NMRV - 030 - 30 - 47 - 0,37 - B3
NMRV - type of gear motor
030 - standard size (center distance in mm)
30 - gear ratio
47 - output shaft rotation speed, rpm
0.06 - engine power, kW
B3 - version of the gear motor

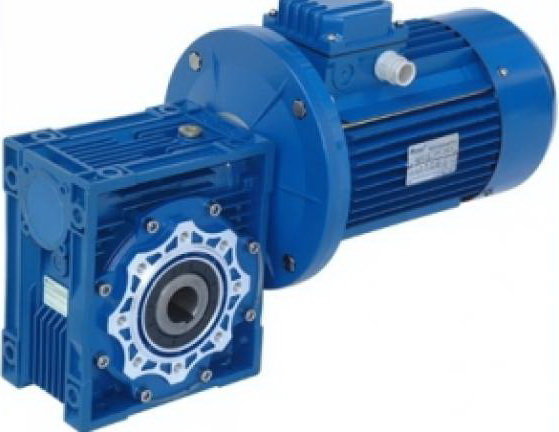

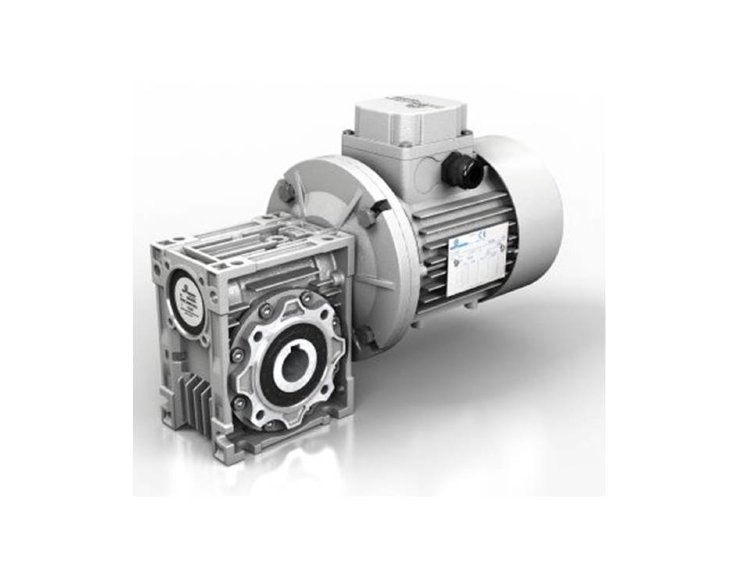

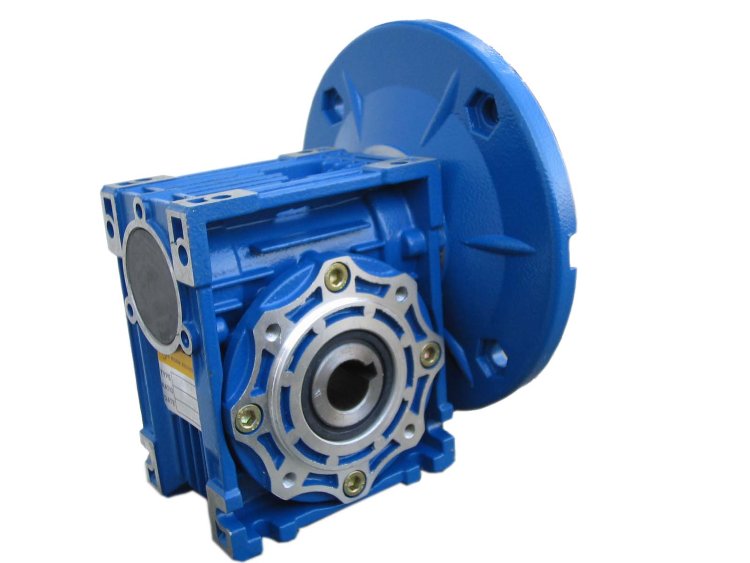

Single-stage drive with worm gear. Provides gear ratios in the range from 5 to 80. It is equipped with IEC standard electric motors with a capacity of 0.06-0.37 kW.
Gear motor NMRV 030 - an inexpensive but effective solution for various industrial applications.
Materials of the parts:
Корпус - алюминий, фланцы - алюминий, червяк - сталь, венец червячного колеса - бронза.
Lubricant type: synthetic ISO VG 320.
NMRV worm gearboxes are a budget solution with high reliability and load capacity.
The power of the drives based on these gearboxes depends on the size and power of the electric motor, which varies in the range from 0.06 to 15 kW. Due to their versatility, NMRV gear motors can be used to replace outdated equipment.
General technical characteristics of NMRV series worm gearboxes:
- 11 standard sizes of worm gear motors with power from 0.06 to 15 kW;
- The gear ratio range is from 5 to 100;
- the maximum output torque is 1400 N·m, the permissible radial load is 16500 N
- the housing of worm gearboxes of the series up to NMRV 105 standard size is made of aluminum alloy;
- the housing of worm gearboxes of 110-200 standard sizes is made of grey cast iron of the G200 brand, processed according to FEM technology;
- The gears of the worm gear are made of bronze alloy GCuSn12 (UNI7013-72);
- worm grinding profile ZI (UNI4760);
- Niemann Quality Control (Fraunhofer Institute for Integrated Circuits);
- patented compact design of the worm gear motor housing;
- The housing of worm gear motors starting from size 030 is painted with blue polyepoxide paint (RAL 5010) in accordance with DIN 1843 standards.
