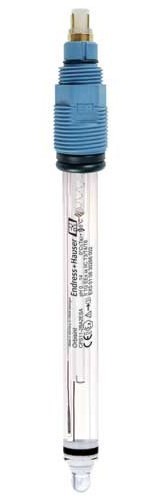

Digital pH Sensor Cps11d-7BT2K Orbisint CPS11D Memosens
Memosens electrode for standard applications
Orbisint CPS11D is a digital universal processor for technological and environmental technologies. It reliably measures even in highly alkaline environments or hazardous areas. Designed for low maintenance and long service life, the electrode offers the best value for money. Thanks to Memosens digital technology, CPS11D combines maximum performance and data integrity with simple operation. It is resistant to corrosion and moisture, provides laboratory calibration and facilitates preventive maintenance.
Benefits
- The durable electrode with a long diffusion path of the poison requires minimal maintenance due to the large dirt-repellent PTFE annular diaphragm
- Suitable for harsh operating conditions: Process glass for highly alkaline environments and pressure resistant up to 16 bar (232 psi)
- Additional salt ring for low conductivity applications such as boiler feed water and injection water
- Maximum process safety due to non-contact, inductive signal transmission
- Allows for preventive maintenance due to the storage of the sensor and process-related data
- Reduced operating costs by minimizing process downtime and extending sensor life
Scope of application
- Long-term monitoring and control of process limits with stable process conditions:
- - Chemical industry
- - Paper industry
- - Power plants (e.g. waste gas washing plants, feed water for boilers)
- - Incinerators
- Water purification:
- - Drinking water
- - Cooling water
- - Water from the well
- With ATEX, FM, CSA certificate for use in hazardous areas.
The principle of measurement |
Glass electrode |
application |
Standard applications in the process and environment. Long-term monitoring, processes with minor changes. |
Characteristic |
Very durable, heavy-duty version /high pressure, integrated potential matching, flat membrane. |
Measuring range |
PH 0-14 |
The principle of measurement |
A compact gel electrode with an annular diaphragm made of PTFE. |
design |
- all shaft lengths with temperature sensor, advanced gel technology - digital electrode with Memosens technology |
material |
Glass /PTFE |
measurement |
Diameter: 12 mm (0.46in) Shaft length: 120, 225, 360 and 425 mm |
Process temperature |
Maximum. 135 ° C (274 ° F) |
Process pressure |
Maximum. 16 bar (230 lbs /sq. m. Inch) |
Temperature sensor |
NTC 30k |
Explosion protection certification |
ATEX |
connection |
Inductive digital connection head with Memosens technology. |
Corrosion protection |
IP68 |
Additional certificates |
A SIL version with Biocompatibility certificate is also available. |
