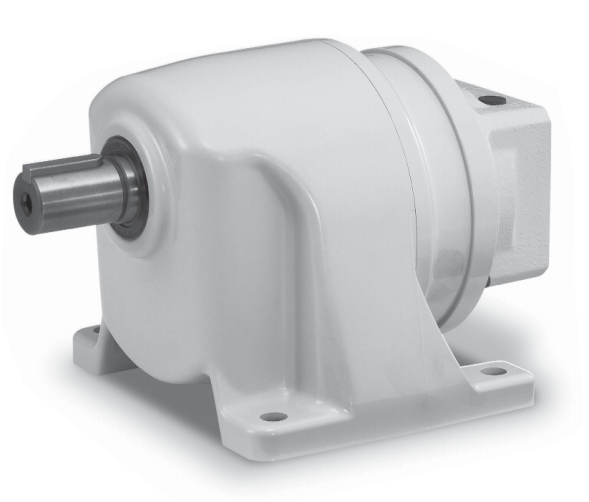

The series is designed to work with servomotors with power up to 2.2 kW and speeds up to 3000 rpm, adapted standard connection and customized solutions. The model range consists of fifteen standard sizes of transmission units presented in two- and three-stage configurations. A solid shaft with a keyway connection is installed at the outlet, mounting on paws, flanged or face mounting to the driven equipment. Free mounting positioning in horizontal and vertical positions, no restrictions on the angle of inclination.
Technical characteristics of Tsubaki GMTK series coaxial gearboxes
- Gear ratio: 5 - 200;
- Number of steps: 2, 3;
- Nominal torque: 2.9 - 1470 Nm;
- Motor power: 0.2 - 2.2 kW;
- Maximum motor speed: 3000 rpm;
- Output speed: 7.5 - 600 rpm.
Standard sizes of Tsubaki GMTK series servo reducers
Type of gearbox | Ratio reductions | Nom. moment, Nm | Power the motor, kW | Speed at the exit, rpm |
GMTK0218L/U | 5 - 25 | 2,9 - 28,1 | 0,2 | 60 - 600 |
GMTK0224L/U | 30 - 75 | 17,2 - 86,2 | 0,2 | 20 - 100 |
GMTK0228L/U | 100 - 200 | 57,1 - 218 | 0,2 | 7,5 - 30 |
GMTK0424L/U | 5 - 25 | 6,1 - 60,8 | 0,4 | 60 - 600 |
GMTK0428L/U | 30 - 75 | 36,3 - 175 | 0,4 | 20 - 100 |
GMTK 0438L/U | 100 - 200 | 117 - 389 | 0,4 | 7,5 - 30 |
GMTK0728L/U | 5 - 25 | 11,3 - 114 | 0,75 | 60 - 600 |
GMTK0738L/U | 30 - 75 | 68 - 300 | 0,75 | 20 - 100 |
GMTK0742L/F | 100 - 200 | 220 - 735 | 0,75 | 7,5 - 30 |
GMTK1538L/U | 5 - 30 | 22,7 - 272 | 1,5 | 50 - 600 |
GMTK1542L/F | 40 - 75 | 176 - 659 | 1,5 | 20 - 75 |
GMTK1550L/F | 100 - 200 | 439 - 1470 | 1,5 | 7,5 - 30 |
GMTK2242L/F | 5 - 30 | 33,3 - 399 | 2,2 | 50 - 600 |
GMTK2250L/F | 40 - 75 | 257 - 966 | 2,2 | 20 - 75 |
GMTK2263L/F | 100 | 644 - 1288 | 2,2 | 15 - 30 |
To buy cylindrical gearboxes for GMTK series servomotors from Tsubaki, you can find out the price and more information about the product by contacting our specialists.
