The characteristic concept that distinguishes conical-cylindrical gear motors, proposed and developed by the design bureau belonging to the manufacturer, was based on leading types of computer technology and specialized computing software products.
All the proper drawing and other accompanying documentation has been completed using computer technology (CAD). As a result, the buyer or customer receives a product characterized by optimal dimensions and a set of functions. Due to the parameters of the integrated gearing, it was possible to reduce the dimensions of the gear motor. The high precision of the gearing minimizes the risk of vibrations and ensures noiseless running. The ergonomic shape of the design suggests that when installing a gear motor, it will not take up much space. It is also worth noting that the primer and polyurethane varnish protect the device body from negative external influences of various kinds.

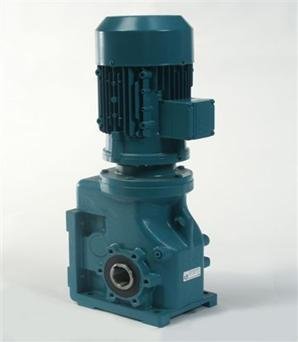

Model: KTM
Size: 3 - 6
Gear ratio: "i"=5,9 - 300
Power: 0.37 - 15 kW
Torque: 100 - 2500 Nm

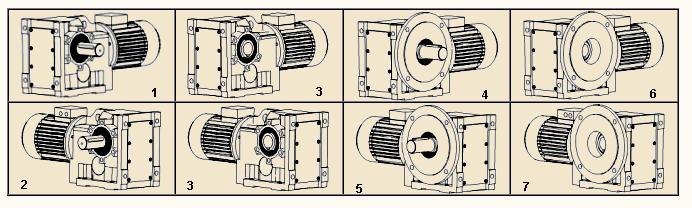

The extended range of input/output shaft/flange combinations allows the use of TOS series equipment to solve almost all types of drive tasks.
The specific shape of the gearbox facilitates its cooperation with all types and types of equipment. The features of the construction of gears and the specifics of their gradation ensure a rational and reliable selection of output revolutions. The body of the devices is painted with polyurethane varnish, which was applied by spraying. Considering specifically the KTM devices, we note that in this case, the color of the mounted engine is also standardized during the coating process. Gearing gearboxes of the gear type must be lubricated with high-quality synthetic oils.
Product type designation
The designation of a gearbox indicates the specifics of its use and the features of the design itself. Therefore, when placing an order, it is important to specify the full code designation (see the example).
Example of a model definition
KTM 53 65.2 21.6 1 2 3 1.5
a) b) c) d) e) f) g) h)
a) KTM is a series of gear motors.
b) 53 is the 5th dimension.
c) 65.2 – gear ratio.
d) 21.6 – output shaft rotation speed rpm.
e) 1 – mounting option.
