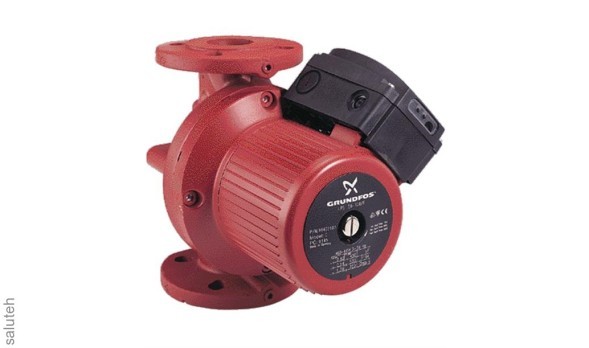

Circulation pump 96404933 UPS100-30 FB 3x400-415V 50Hz PN6

Brand:Grundfos
For comparison
To favorites
Vendor code:96404933
Circulation pump 96404933 UPS100-30 FB 3x400-415V 50Hz PN6
Brand
Pre-order
$2.90
11
Delivery across Russia
On-line payment on the website
Discount system
Purchase returns
Description
Features
Reviews

Pumps with wet rotor and step-by-step speed control

A pump with a "wet" rotor, i.e. a pump
and the electric motor form a single unit without a shaft seal, with only two gaskets for sealing. The bearings are lubricated with the pumped liquid.

In order to avoid problems with disposal, great attention has been paid to the use of as few different materials as possible.

The characteristics of the pump are as follows:

  • 3 the speed of the electric motor.
  • Ceramic radial bearings.
  • Carbon fiber thrust bearing.
  • Rotor shell, rotor coating, stainless steel support disc.
  • The stator casing is made of aluminum alloy.
  • the pump body is bronze.
  • A stator with a built-in thermal relay.

The electric motor is a 3-phase electric motor.

The pump is supplied with a standard module in a terminal box. Standard
