The Keofitt sterile sampling valve consists of three parts - the valve body, the valve head and the diaphragm. A rubber membrane placed on the stem of the valve head acts as an elastic gasket. The valve body and valve heads are interchangeable. The valves are available in two standard sizes:

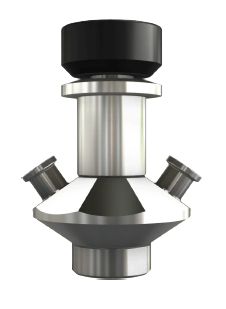

The Keofitt CLASSIC W15 sampling valve is designed for products with high viscosity in the range of 0-50,000 sP with particles up to 8 mm in diameter.
This valve is used in various industries such as brewing, dairy, pharmaceutical and biotechnology for products such as:
• Yogurt
• Honey
• Syrup
• Ketchup
• Marmalade
• Creams and lotions
• Fruit pulp products
It is supplied with a PTFE membrane.
The principle of operation.
The Keofitt valve is designed for sampling with valve sterilization before and after each sampling.
The valve is open. Sampling
The valve is opened by turning the handle (adjustable valve) or by pressing the lever (two-position valve). At this
