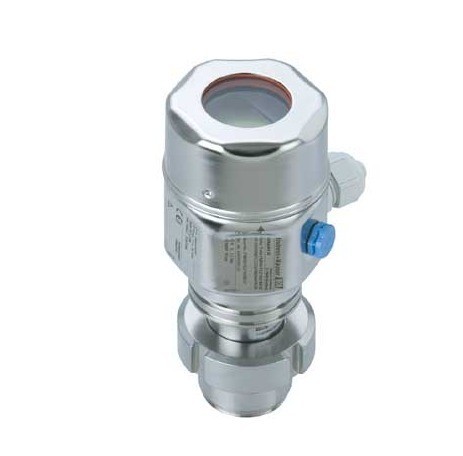

Pressure sensor Deltapilot FMB50 FMB50-AA22QA1HGATIJB3U+AAF1
Deltapilot FMB50 - submersible sensor with fixed connection to the process. The sensor is used in all industries. DeltapilotFMB50 It is designed for level measurement in liquid and pasty media, in open or closed tanks and is insensitive to the possible presence of foam.It is suitable for use in systems with SIL2 functional safety requirements.
Specifications:
|
Principle of measurement
|
Hydrostatic measurement principle
|
|
|
Specifications
|
Pressure transducer for hydrostatic level measurement, CONTITE measuring cell with metal diaphragm:
- sealed welding
- absolute protection against condensation
- resistance to climatic conditions
- long-term stability
- minimal effect of operating temperature
Compact design
|
|
|
Food /Communication
|
4...20mA HART:
11,5...45В DC
Ex ia: 11,5...30V DC
PROFIBUS PA
FOUNDATION Fieldbus
|
|
|
Error rate
|
0,2%
The average is 0.1%
|
|
|
Long-term stability
|
0.05% of the upper range value per year
|
|
|
Operating temperature
|
-10°C...85°C
|
|
|
Ambient temperature
|
-40°C...85°C
|
|
|
Operating range
|
100mbar...10bar
|
|
|
The smallest calibrated scale step
|
10 mbar (1.45 psi)
|
|
|
Vacuum resistance
|
0 mbar abs.
|
|
|
Range readjustment factor
|
100:1
|
|
|
Max. overpressure
|
40 bar
|
|
|
Joining the process
|
Threaded
Flanged (EN, ANSI, JIS)
|
|
|
Process membrane material
|
316L, AlloyC alloy
Gold-rhodium plating
|
|
|
Gasket material
|
Viton, EPDM, kalrez, no
|
|
|
Filling liquid:
|
Inert oil,
Synthetic oil
|
|
|
Housing material
|
316L, cast aluminum
|
|
|
Output signals
|
4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
|
|
|
Certificates/Permissions
|
ATEX
CSA
FM
IECEx
TIIS
IS BORN
SIL
factory test certificates
certificate for drinking water
WHG
|
|
|
Safety approvals
|
Overflow protection WHG
SIL
|
|
|
Design approvals
|
EN10204-3.1
NACE MR0175
|
|
|
Certificates for drinking water
|
KTW/NSF
|
|
|
Additional information
|
Modular design, component compatibility with other pressure transducers. Advanced diagnostic functions
|
|
Features
Power Supply, In
- 12V DC
Brand
Endress Hauser
