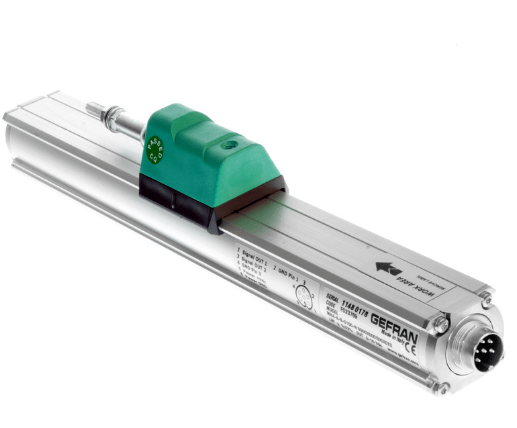

Linear position sensor F023776 - MK4-A-B-0300-N 0000X000X00X0XX
Review
The non-contact motion sensor is made using ONDA technology.
The absence of an electrical contact on the cursor eliminates wear and extends the service life of the sensor.
Compact size for easy installation.
full protection from external operating conditions in harmful environments with the presence of dust and heavy pollution.
Excellent linearity, repeatability, vibration and shock resistance.
Description
- ONDA technology
- Optimized mechanical structure
- Stroke from 50 to 4000mm
- Floating and sliding magnetic cursors
- Various analog current or voltage outputs for measuring forward position and speed, or measuring position in the opposite direction
- One or two cursors at the same time
- Power supply 24Vdc ±20%
- Vibration resistance (DINIEC68T2/612g)
- IP67 protection
- Operating temperature: -30...+75°
