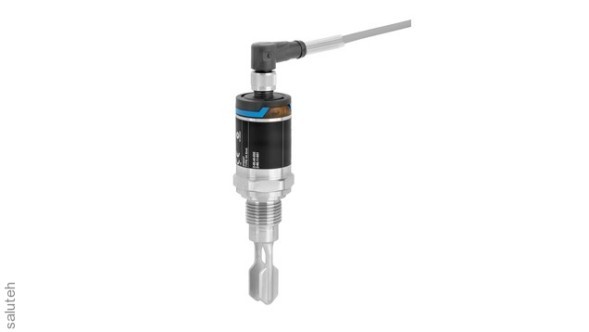

Liquiphant Exposure Sensor F TL31 FTL31-GR4U2AAXCJ

Level Sensor FTL31 Liquiphant FTL31

Liquiphant FTL31 is a liquid level limit sensor. The FTL31 is designed for industrial applications in all industries. The Liquiphant sensor can be used to prevent overflow or protect the pump from dry running in cleaning and filtration systems, as well as in cooling vessels and vessels with lubricants.

Compact: The most compact vibration sensor on the market

Safety:

• Continuous self-diagnosis
• Reliable level detection regardless of the properties of the environment

Effectiveness:

• It does not require calibration and adjustment
• It does not require complex commissioning

Specifications:

Principle of measurement

Vibration sensors, liquid products

Specifications/Application

A limit level sensor designed for liquids and installed in tanks, containers or pipelines.

• Food /Communication    20 ... 253V AC/DC, 2-wire 10 ... 30V DC-PNP 3-wire
• Ambient temperature    -40 °C ... 70 °C (-40 °F ... 158 °F)
• Operating temperature    -40 °C ... 150 °C (-40 °F ... 302 °F)
• Operating pressure abs. /max. overpressure limit    Vacuum ... 40 bar (Vacuum ... 580 lb/sq. inch)
• Min. density of the measured product    >0,7g/cm³ (>0,5g/cm³ optional)
• Wetted parts    316L
• Joining the process    Резьбовые соединения: G1/2, G3/4, G1, MNPT1/2, MNPT3/4, MNPT1, R1/2, R3/4, R1
• Exit    Per./post. current, post. current – PNP
• Certificates/Standards    WHG
• Material EN10204-3.1
• Final Inspection Report Marine DNV GL, ABS, LR
• Safety approvals    Overfill prevention WHG
• Certificate of construction    EN 10204-3.1
• Marine Certificate    ABS/LR/BV/DNV

Options

• Switching delay during correction
• Cleaning of oils and grease,
• Without PWIS
