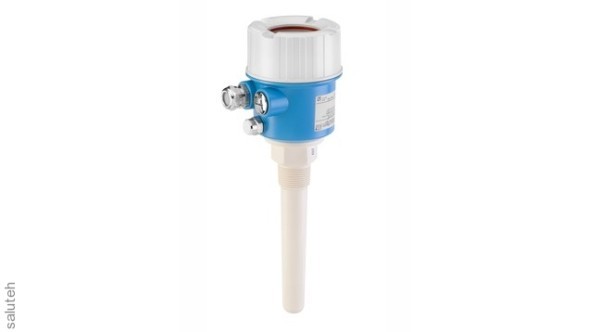

Minicap FTC260 - a simple, low-cost device with a rod probe. It is designed to determine the maximum level of bulk media, especially aggressive and prone to intensive sediment formation. It is designed to determine the limit level of light bulk products such as cereals, flour, milk powder, animal feed, cement, chalk or gypsum
Specifications:
Principle of measurement of high-capacity, bulk productscharacteristics/Application Compact rod probe with product adhesion compensation
Quick Launch
Additional information provided by the FDA
Food /Communication 10,8 ... 45V DC, DC-PNP 3-wire
20 ... 253V AC, or
20 ... 55V DC, Relay output
Ambient temperature-40 °C ... 80 °C
The operating temperature is 40 °C... 130°C
Operating pressure abs. /max. overpressure limit-1... 25 bar
Wetted particles=Polyphenylene Sulfide
(glass fiber content at
