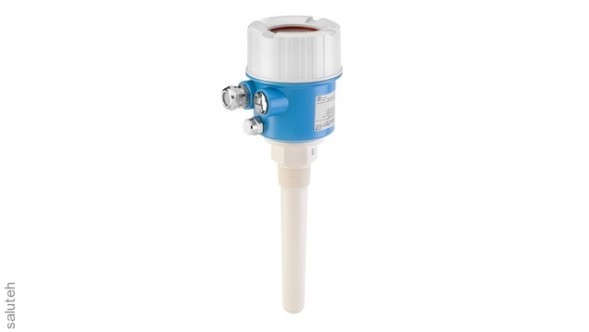

Minicap FTC260 - a simple, low-cost device with a rod probe. It is designed to determine the maximum level of bulk media, especially aggressive and prone to intensive sediment formation. It is designed to determine the limit level of light bulk products such as cereals, flour, milk powder, animal feed, cement, chalk or gypsum
Specifications:
Principle of measuring high-capacity, bulk productscharacteristics/Application Compact rod probe with product adhesion compensation
Quick Launch
Additional information provided by the FDA
Food /Communication 10,8 ... 45V DC, DC-PNP 3-wire
20 ... 253V AC, or
20 ... 55V DC, Relay output
Ambient temperature-40 °C ... 80 °C
The operating temperature is 40 °C... 130°C
Working pressure abs. /max. excess pressure limit-1... 25 bar
Wetted particles=Polyphenylene Sulfide
(the glass fiber content is approx. 40%)
Joining the PROCESSR1"
NPT1"
Sensor length140 mm
OUTPNP
Relay Output (SPDT)
Certificates/Technical standards
FM
CSA
WHG
Optional aluminum housing
Application range Max. particle size. 30 mm,
DP min. 1.6
Bending strength 1400 N (at the tip of the probe)
