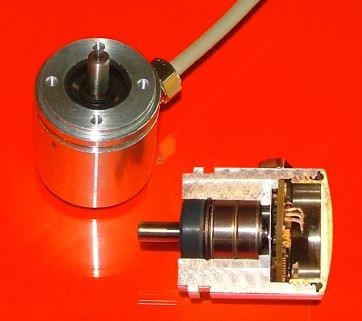

Electromagnetic angular displacement sensors TWK-ELEKTRONIK TB/TBX 36 series - used in mechanical engineering, construction machinery, underwater devices and food processing equipment. The design of TWK-ELEKTRONIK series TBX 36 electromagnetic rotational motion sensors has a durable 5 mm thick aluminum housing, a shaft and ball bearings made of stainless steel, with a radial seal, a rotor with a shaft and a permanent magnet in the front chamber, a sensor system and switching components installed in a closed main chamber, there is an additional housing filling, self- The device is connected via a cable, and these sensors also have analog and digital interfaces.
Technical characteristics of TWK-ELEKTRONIK series TB/TBX 36 electromagnetic angular displacement sensors:
- Types of interfaces: digital, analog;
- Measuring ranges: from 90 to 360°;
- Permission: 4096 im/about;
- Operating temperature ranges: -40° to + 85°C;
- Protection classes: IP 66, IP 69К.
