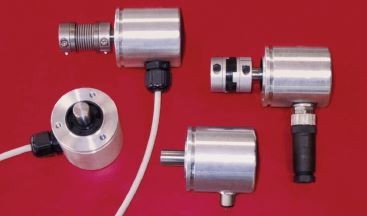

Electromagnetic angular displacement sensors TWK-ELEKTRONIK TB/TBX 50 series They are used in such industries as mechanical engineering, construction machinery and the food industry. Sensors of this type have a non-contact sensor, which in turn eliminates its wear. The design of TWK-ELEKTRONIK series TB/TBX 50 electromagnetic angular displacement sensors has a durable 5 mm thick housing made of seawater-resistant aluminum, a shaft and ball bearings made of stainless steel, movable elements with a permanent magnet in the front chamber, electronic ASiC stuffing, interface components installed in the main chamber, separated from the rotating elements by a metal wall - in order to provide additional protection against moisture according to the IP 69K protection class, these sensors also have analog and digital interfaces.
You can buy TWK-ELEKTRONIK series TB/TBX 50 electromagnetic angular displacement sensors in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK series TB/TBX 50 electromagnetic angular displacement sensors:
- Sensor type: one-turnaround;
- Types of interfaces: digital, analog;
- Measuring range: 360°;
- Permission: 4096 im/about;
- Operating temperature ranges: -40° to + 85°C;
- Protection classes: IP 66, IP 69К.
