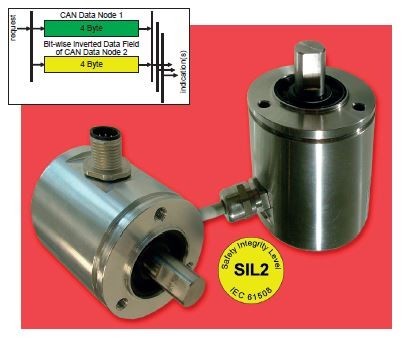

Electromagnetic angular displacement sensors TWK-ELEKTRONIK TBN 50/S3 series They are used in the field of automation and industry. The design of the sensors consists of a durable aluminum housing, a stainless steel shaft, ball bearings with an O-ring, the electronics are connected via M12x1. 8-pin sensor connectors or via a standard cable. The angular positions are fixed by means of Hall sensors, at the same time signal processing includes the generation of digital output signals. TWK-ELEKTRONIK series TBN 50/S3 electromagnetic angular displacement sensors are SIL2 certified and have a safe CANopen Safety interface.
You can buy TWK-ELEKTRONIK series TBN 50/S3 electromagnetic angular displacement sensors in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK series TBN 50/S3 electromagnetic angular displacement sensors:
- Sensor type: one-turnaround;
- Type of certification: SIL 2;
- Interface Type: CANopen Safety;
- Permission: 8192 im/about;
- Operating temperature ranges: -40° to + 85°C;
- Protection classes: IP 66, IP 69К.
