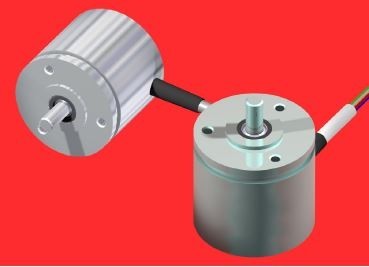

Electromagnetic angular displacement sensors TWK-ELEKTRONIK TM/TMX 42 series They are used in mechanical engineering, construction, underwater devices and equipment for the food industry. The sensor system operates on the Hall principle, rotating non-contact, therefore therefore has no wear. The design of the TWK-ELEKTRONIK electromagnetic angular displacement sensors of the TM/TMX 42 series consists of a durable anodized aluminum housing, a stainless steel shaft, movable elements with a permanent magnet in the front of the sensor structure, electronics and an ASiC microprocessor, as well as interface components installed in the main chamber, separated by a metal partition from the moving components, an integrated a speed counter with a storage device that stores information even when the power is turned off, additional sealing against moisture according to the IP 69K protection class, the device itself is connected via a cable. TWK-ELEKTRONIK electromagnetic angular displacement sensors also have analog and digital interfaces.
You can buy TWK-ELEKTRONIK TM/TMX 42 series electromagnetic angular displacement sensors in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK TM/TMX 42 series electromagnetic angular displacement sensors:
- Sensor type: multi-turntable;
- Types of interfaces: digital, analog;
- Measuring range: 32768 revolutions;
- Permission: 4096 im/about;
- Operating temperature ranges: -40° to + 85°C;
- Protection classes: IP 66, IP 69К.
