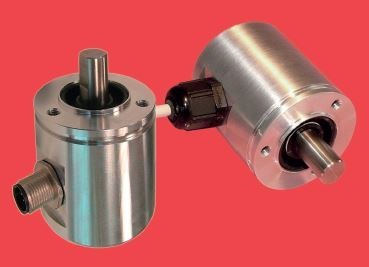

Electromagnetic sensors TWK-ELEKTRONIK TM/TMX 50 series They are used in mechanical engineering, especially in construction machinery, underwater devices and food conditioning equipment. A non-contact, wear-free rotating sensor system operating on the Hall principle. The design of the TWK-ELEKTRONIK electromagnetic sensors of the TMX 50 series consists of: a robust 55 mm wall thickness housing made of seawater-resistant aluminum or stainless steel - a stainless steel shaft - rotating elements with a permanent magnet in the front chamber - an electronic circuit with ASiC and Hall elements and interface components installed in the main chamber, separated from rotating elements with a metal wall - an integrated counter for obtaining revolutions with a storage device that stores information when the power is turned off - additional sealing from water (IP 69K) - electrical connections through a cylindrical sleeve or a wired outlet. These sensors have analog and digital interfaces.
You can buy TWK-ELEKTRONIK electromagnetic sensors of the TM/TMX 50 series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK TM/TMX 50 series electromagnetic sensors:
- Sensor type: multi-turntable;
- Types of interfaces: digital, analog;
- Measuring range: 32768 revolutions;
- Permission: 4096 im/about;
- Operating temperature range: -40° to + 85°C;
- Protection classes: IP 66, IP 69К.
