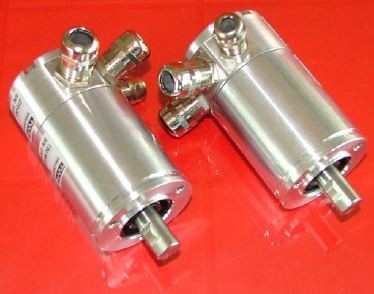

Electromagnetic angular displacement sensors TWK-ELEKTRONIK TSD 50 series They are used in mechanical engineering, especially in construction machinery, underwater devices and food conditioning equipment. A non-contact, wear-free rotating sensor system operating on the Hall principle. The design of the TWK-ELEKTRONIK series TSD 50 electromagnetic rotational motion sensors consists of: a robust housing made of seawater—resistant aluminum or stainless steel — a stainless steel shaft — ball bearings with a radial seal — an electronic circuit with ASiC and Hall elements — electrical connections via cable couplings on the connecting cover - additional housing filling is possible (IP 69K). An integrated counter is installed to register revolutions with a battery buffer. The angle position is recorded using Hall sensors and signal processing, including the generation of an output signal. The data is output via the Profibus-DP interface
You can buy TWK-ELEKTRONIK series TSD 50 electromagnetic angular displacement sensors in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK series TSD 50 electromagnetic angular displacement sensors:
- Interface Type: Profibus-DP;
- Sensor type: multi-turntable;
- Measuring range: 4096 revolutions;
- Permission: 4096 im/about;
- Operating temperature range: -40° to + 85°C;
- Protection classes: IP 66, IP 69К.
