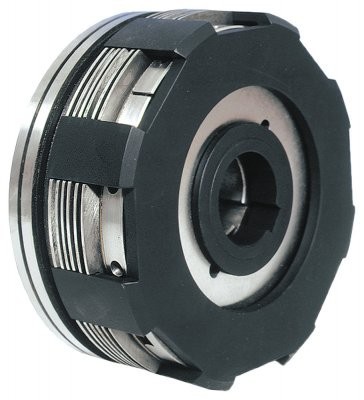

Multi-disc friction clutches ELK from the company PSP Pohony they have an electromagnetic drive, torque transmission is carried out by compressing the built-in external and internal plates, internal discs have friction pads, a double contact ring. Depending on the requirements of the process, work can be carried out both in a dry environment and in the presence of lubricants.
The air gap is adjusted using a special nut screwed onto the anchor plate and holding the disc package, special measuring devices connected to the adjusting nut are used for more precise adjustment.
Popular areas for the application of this series are packaging machinery, food processing equipment, textile installations and other general industrial and profile machines.
Technical characteristics of PSP Pohony ELK multi-disc friction clutches
- Rated torque (dynamic): 6.3 - 630 Nm;
- Rated torque (static): 9 - 900 Nm;
- Max. speed: 1750 - 3000 rpm;
- Coil power: 18 - 69.6 W;
- Voltage: 24 V (DC);
- Air gap (lubricated/dry): 0.3 - 0.5 mm;
- Outer diameter: 90 - 235 mm;
- Diameter of the sleeve: 15 - 70 mm.
Parameters of standard sizes of electromagnetic friction couplings PSP Pohony ELK
Type of coupling | Rated torque, Nm | Max. speed, rpm | Power coils, W | Diameter of the sleeve, mm | |
in dynamics | static | ||||
ELK 0,6 | 6,3 | 9,0 | 3000 | 18 | 15 - 17 |
ELK 1,2 | 12 | 18 | 3000 | 25,2 | 15 - 20 |
ELK 2,5 | 25 | 35,5 | 3000 | 28,8 | 18 - 25 |
ELK 4 | 40 | 56 | 3000 | 30 | 20 - 30 |
ELK 6,3 | 63 | 90 | 3000 | 33,6 | 25 - 35 |
ELK 10 | 100 | 140 | 3000 | 39,6 | 28 - 40 |
ELK 16 | 160 | 225 | 2500 | 44,4 | 30 - 45 |
ELK 25 | 250 | 355 | 2200 | 60 | 40 - 55 |
ELK 40 | 400 | 560 | 2000 | 59 | 45 - 60 |
ELK 63 | 630 | 900 | 1750 | 69,6 | 50 - 70 |
You can buy multi-disc electromagnetic couplings PSP Pohony ELK, find out the price and more information about the products by contacting our specialists.
