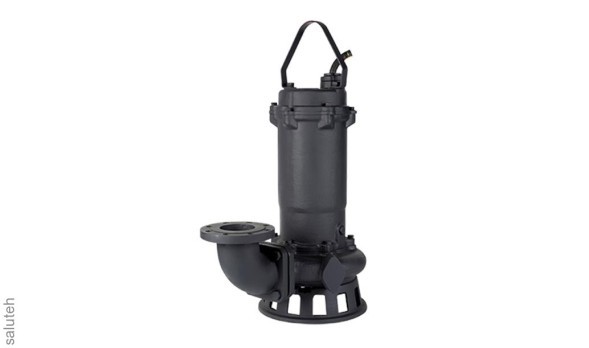

DPK drainage pump.20.150.220.5.1D
Submersible drainage Pump
The Grundfos DPK pump is a submersible pump for use in drainage systems.
The pump with a closed impeller, designed for a free passage of 20 mm, is suitable for the discharge of large volumes of groundwater and surface water, wastewater at high pressure.
Due to its compact design, the pump is suitable for use in both portable and stationary installations.
The pump is made of cast iron, has a vertical pressure channel and is equipped with an integrated submersible three-phase closed electric motor having insulation class F (155°C).
The pump has a side pressure port and a double shaft seal.
The pump is ready to be connected either autonomously or on an automatic pipe coupling.
The pump is equipped with a bimetallic thermal sensor to protect the engine from overheating and a leak sensor to control the penetration of liquid into the engine body.
The pump is supplied with a 10 m long cable.
