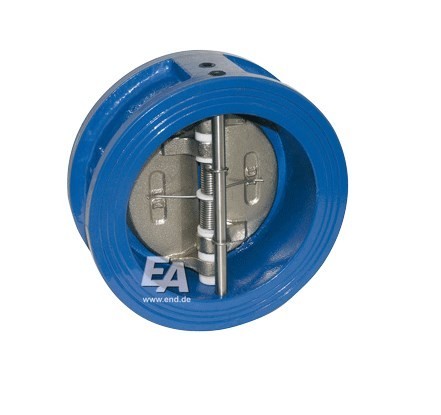

Double-leaf check valve, DN100, PN16, GGG-40/EPDM/GGG-40-vernickelt
Additional information
- Execution Check valves
- The body is cast iron
- Connection Between the flange
- Triggering -
- Size DN100
- EPDM Seal
- Voltage -
- Temperature of the measured medium [°C] 0
- Temperature of the measured medium [°C] 120
- Ambient temperature [°C] 0
- Ambient temperature [°C] 80
- Operating pressure [bar] 0
- Working pressure 16
Double-leaf check valve
A double-leaf flanged check valve is used in complex engineering systems to prevent the effects of water shocks, for example, when the pump is turned off. The shut-off element of the valve is made in the form of a disk, which, under the influence of the flow of the medium, folds in half, and when exposed to the reverse flow, the disk returns to its original position, thereby blocking its further movement in the pipeline system.
Unlike a single-leaf check valve, which can only be installed on a pipeline in a horizontal position, a double-leaf valve can be installed on a horizontal, inclined or vertical pipeline.
Dimensions and characteristics of flanged double-leaf check valves
Name: check valve, double-leaf valve, flanged check valve.
- Body: cast iron.
- Disc flaps: steel, cast iron, stainless steel.
- Seal: EPDM, NBR, VITON.
- Operating temperature: from -25° to +140° (briefly up to +150°C).
- Application: water supply systems, fire fighting, mildly aggressive environments, etc.
- Dimensions: from DN 032 to DN 1000 mm.
- Maximum pressure: 16 bar.
- Operating pressure: 0.5 bar.
- Flow direction: one-way.
- Connection type: flanged (according to GOST 12815-80, EN 1092-2).
Advantages of double-leaf valves:
- easy installation, no special equipment required;
- small working length and weight;
- the ability to use in conditions with varying degrees of complexity;
- extensive scope of application;
- Easy operation;
- the possibility of installation on a horizontal, vertical and inclined section of the pipeline.
Purpose: The main purpose of shut-off valves is to use them as shut-off devices in the construction of pipelines intended for the transportation of gas, petroleum products, chemical products, water, oils.
