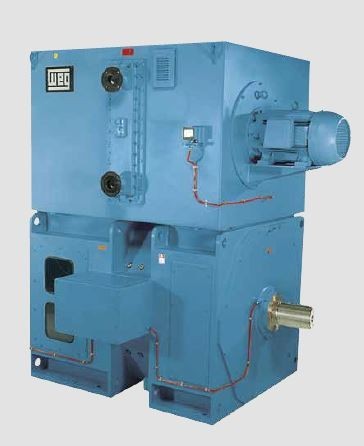

Direct current electric motors of the brand WAY They have been developed using advanced technologies, have a compact design, and have excellent dynamic characteristics that meet all the necessary requirements in the field of automation and process control, for daily and trouble-free operation, due to their unpretentiousness and simplicity combined with the safety of their use, truly allow them to be indispensable in any industrial and manufacturing industries. In combination with the high reliability of WEG brand electric motors, which are practically not whimsical in long-term operation, while simultaneously using DC electric motors of the brand WAY They are widely used in exhaust fans, industrial, boring, turning and grinding machines, piston pumps, textile equipment, belt conveyors, lifting equipment (hoists, cranes), overhead cranes and industrial presses. They are also used in the pulp and paper, chemical and petrochemical industries, in traction drives for vehicles, in railway transport, as well as in cement production.
The winding for rotors and stators is made of copper wire impregnated with special varnish or enamel, in accordance with insulation classes F or H. As a rule, the housings of DC electric motors of the brand WAY They are made of cast iron or high-quality steels, and at the same time (at the request of the customer) they can be of any shape, and on the surface of their panels, additional equipment is provided in the form of various encoders and tachogenerators. Also, switches in engines deserve special attention, which in turn are made of copper and high-quality insulating materials. In combination with current-removing brushes, the switches provide reliable electrical conductivity. In turn, such components of a DC electric motor as brush holders, already at the design stage and subsequent production on high-tech equipment, assume precise functionality, taking into account ensuring a long service life. As a rule, the brushes themselves are made of graphite. According to the standard sizes and functional purpose of a DC electric motor, bearings are also divided into ball bearings and plain bearings. At the same time, upon request, the customer can also receive a set of plain bearings with a set of lubricants. As an addition, any DC electric motors of the brand WAY , can be equipped with sensors for: feedback (tachogenerators, encoders, resolvers), temperature measurement (PTO, PTC, PT100, KTY84), brush wear monitoring, oil refilling system in the bearing assembly, in order to lubricate bearings.
Technical characteristics of WEG DC electric motors:
- Overall dimensions (height): from 90 to 1800 mm;
- Rated power: up to 10,000 kW;
- Operating voltage range: from 110 to 1000 V (the voltage value can be increased on request);
- Maximum speed: from 50 to 3000 rpm;
- Rated torque: from 2 to 200,000 Nm;
- Protection classes: IP21, IP23S, IP55, IP55W;
- Insulation classes: F, H;
- Type of mounting design: horizontal;
- Types of cooling: IC01, IC06, IC87W, IC410, IC666;
- Types of bearings used: roller, ball bearings;
- Frequency: from 50 to 60 Hz.
Advantages of WEG brand DC electric motors:
