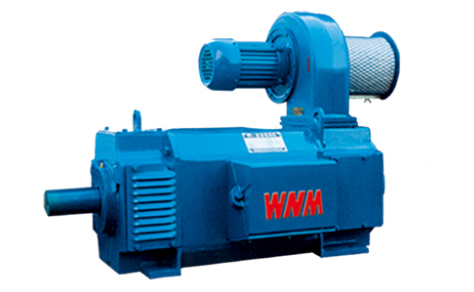

Series DC motors WNM Z4 It covers small and medium-sized standard sizes, and is used in many industrial sectors for mechanical drive, such as metallurgy, printing, mechanical engineering, paper production, textiles and other production areas. The engine is designed for long-term operation without short-term interruptions (type S1).
The series is characterized by stability in operation, good dynamics and performance. A wide range of speeds, a ratio of limit values of 1 : 200. Compact design, light weight, high overload resistance. The electric motor is powered by stationary rectifiers or DC generators. Various options are available to protect the case from external factors. By default, a forced-type air cooling system is installed, but other types (self-ventilation, air/air, air/water heat exchangers) can also be implemented depending on the size. Additional accessories and technical equipment on request.
The electric motors of our partner fully correspond to the electric motors manufactured by Simotop Group /Simo Group.
Technical characteristics of WNM Z4 DC motors
- Rated power: 1.5 - 600 kW;
- Rotation speed: 3000, 1500, 1000, 750, 600, 500, 400, 300, 200 rpm;
- Operating voltage range: 160 (nominal), 440 V;
- Overall height: 100 - 400 mm;
- Mounting design: IN 1001, IN 2001, IN 3001, IN 3011, IN 3111;
- Degree of protection housing: IP21S, IP23, IP44;
- Degree of protection: IC06, on request IC17, IC37, IC01, IC666, IC86W;
- Insulation class: F;
- Operating temperature range: up to + 40 °C.
Rated characteristics of standard sizes of WNM Z4 engines
| Engine Type | Power, kW | Rated speed rotations, rpm | Moment of inertia, kg·m2 |
| Z4-100-1 | 1,4-2,2 | 860-2960 | 0,044 |
| Z4-112/2-1 | 1,9-5,5 | 855-2940 | 0,072 |
| Z4-112/2-2 | 2,6-7,5 | 895-2980 | 0,088 |
| Z4-112/4-1 | 3,7-11 | 855-2950 | 0,128 |
| Z4-112/4-2 | 5-15 | 955-3035 | 0,156 |
| Z4-132-1 | 7-18,5 | 865-3000 | 0,32 |
| Z4-132-2 | 10-22 | 905-3090 | 0,40 |
| Z4-132-3 | 13,5-30 | 945-3000 | 0,48 |
| Z4-160-11 | 19,5-37 | 1350-3000 | 0,64 |
| Z4-160-22 | 40,5-45 | 2710-3000 | 0,76 |
| Z4-160-21 | 16,5-18,5 | 900-1000 | 0,76 |
| Z4-160-32 | 49,5-55 | 2710-3010 | 0,88 |
| Z4-160-31 | 19,5-30 | 900-1500 | 0,88 |
| Z4-180-11 | 13-37 | 540-1500 | 1,52 |
| Z4-180-22 | 67-75 | 2710-3000 | 1,72 |
| Z4-180-21 | 16,5-45 | 540-1500 | 1,72 |
| Z4-180-31 | 19,5-37 | 540-1000 | 1,92 |
| Z4-180-42 | 81-90 | 2710-3000 | 2,20 |
| Z4-180-41 | 27-55 | 670-1500 | 2,20 |
| Z4-200-12 | 99-110 | 2710-3000 | 3,68 |
| Z4-200-11 | 19,5-45 | 450-1000 | 3,68 |
| Z4-200-21 | 27-75 | 540-1500 | 4,2 |
| Z4-200-32 | 119-132 | 2710-3000 | 4,8 |
| Z4-200-31 | 27-90 | 450-1500 | 4,8 |
| Z4-225-11 | 33-110 | 450-1500 | 5,0 |
| Z4-225-21 | 40-55 | 450-600 | 5,6 |
| Z4-225-31 | 67-132 | 680-1500 | 6,2 |
| Z4-250-12 | 144-160 | 1360-1500 | 8,8 |
| Z4-250-11 | 99-110 | 900-1000 | 8,8 |
| Z4-250-21 | 81-185 | 750-1500 | 10,0 |
| Z4-250-31 | 49-200 | 450-1500 | 11,2 |
| Z4-250-42 | 144-160 | 900-1000 | 12,8 |
| Z4-250-41 | 67-220 | 450-1500 | 12,8 |
| Z4-280-11 | 226-250 | 1355-1500 | 16,4 |
| Z4-280-22 | 253-280 | 1355-1500 | 18,4 |
| Z4-280-21 | 99-200 | 540-1000 | 18,4 |
| Z4-280-32 | 144-315 | 675-1500 | 21,2 |
| Z4-280-31 | 80-220 | 450-1000 | 21,2 |
| Z4-280-42 | 225-250 | 900-1000 | 24,0 |
| Z4-280-41 | 98-185 | 450-750 | 24,0 |
| Z4-315-11 | 98-160 | 360-600 | 21,2 |
| Z4-315-12 | 180-280 | 750-1500 | 21,2 |
| Z4-315-21 | 143-185 | 450-600 | 24,0 |
| Z4-315-22 | 225-315 | 680-1000 | 24,0 |
| Z4-315-31 | 118-132 | 360-400 | 27,2 |
| Z4-315-32 | 180-355 | 540-1000 | 27,2 |
| Z4-315-41 | 143-185 | 360-500 | 30,8 |
| Z4-315-42 | 225-400 | 540-1000 | 30,8 |
| Z4-355-11 | 180-280 | 500-600 | 42,0 |
| Z4-355-12 | 166-450 | 360-1000 | 42,0 |
| Z4-355-21 | 180-200 | 360-400 | 46,0 |
| Z4-355-22 | 225-400 | 450-750 | 46,0 |
| Z4-355-31 | 197-220 | 360-400 | 52,0 |
| Z4-355-32 | 284-450 | 450-750 | 52,0 |
| Z4-355-42 | 225-400 | 360-600 | 60,0 |
| Z4-400-22 | 430-475 | 680-750 | 74,0 |
| Z4-400-21 | 180-260 | 270-400 | 74,0 |
| Z4-400-32 | 344-530 | 450-750 | 84,0 |
| Z4-400-31 | 197-280 | 270-400 | 84,0 |
| Z4-400-42 | 361-600 | 450-750 | 94,0 |
| Z4-400-41 | 225-355 | 270-400 | 94,0 |
| Z4-450-22 | 362-520 | 360-600 | 138 |
| Z4-450-21 | 253-280 | 270-300 | 138 |
| Z4-450-32 | 284-530 | 270-600 | 156 |
| Z4-450-31 | 200-220 | 180-200 | 156 |
| Z4-450-42 | 320-600 | 270-600 | 174 |
| Z4-450-41 | 235-260 | 180-200 | 174 |
