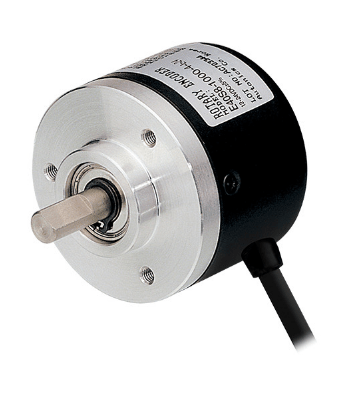

Encoder E40S8-1000-3T-24

TECHNICAL DESCRIPTION

• Outer diameter of the shaft    Ø6 mm
• Max. response rate    300 kHz
• Max. permissible rotation speed    5000 rpm.
• Starting moment    Max. 40 gs-cm (max. 0.00392 Nm)
• Permission    360
• Output phases    A, B, Z
• Control output    Complementary
• Supply voltage    12-24V DC ±5% (P-P ripple: max. 5%)
• Connection method    Cable on the side
• Degree of protection    IP50
• Certificates    @(THIS)
• Ambient temperature    -10...+70℃, during storage: -25...+85℃
• Ambient humidity    Relative humidity 35-85%, storage: 35-90%
• Accessories    Ø6mm Connector (standard), Ø8mm Connector (sold separately)
• Weight    Approx. 120 g

● When choosing a resolution, it must be taken into account that the rotation frequency at the maximum pulse frequency must be less than or equal to the value of the maximum permissible rotation frequency.

[Rotation speed at max. pulse frequency (rpm)=max. pulse frequency/resolution × 60 seconds]

● The weight is indicated taking into account the weight of the package. The weight of the device without packaging is indicated in parentheses.

● Environmental conditions are specified for conditions without freezing or condensation.
