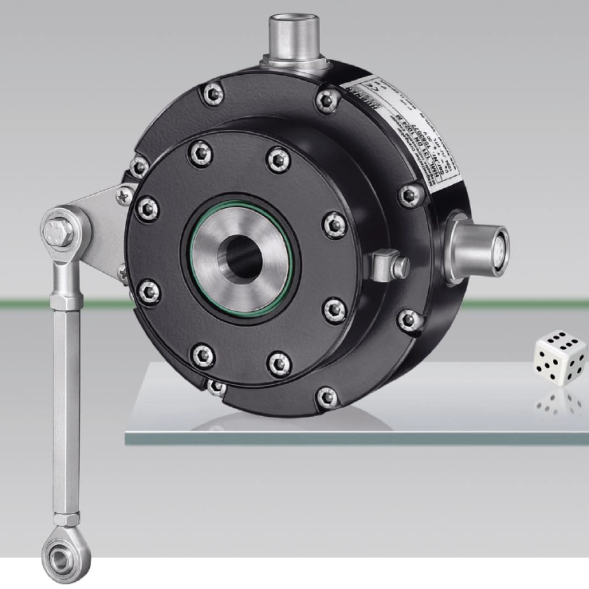

Baumer Huebner HML 131 M Encoder

Baumer Huebner is one of the European leaders in manufacturing feedback sensors to determine the speed of rotation, the position of the rotating shaft, and tracking the length of movement.

Our company maintains a wide range of tachogenerators and encoders in stock. If the feedback sensor required by the customer is not available, we are ready to offer the most suitable sensor available.

You can buy an incremental optical encoder Baumer Huebner HML 131 M in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

Baumer Huebner HML 131 M Incremental Optical Encoder

• Number of pulses per rpm: 128, 256, 1024, 2048;
• Maximum speed: 2800 vol;
• Maximum output frequency: 95.5 kHz;
• Output signal level: HTL, TTL;
• Output signals: A+,A -, B+,B -, Z+, Z-;
• Output signals: Push-pull (T) /RS422 (S);
• Supply voltage: 9-30 V /5V DC;
• Maximum load current: 100 mA;
• Shaft diameter: 36 mm;
• Protection class: IP68;
• Operating temperature: -20 +90°C.
