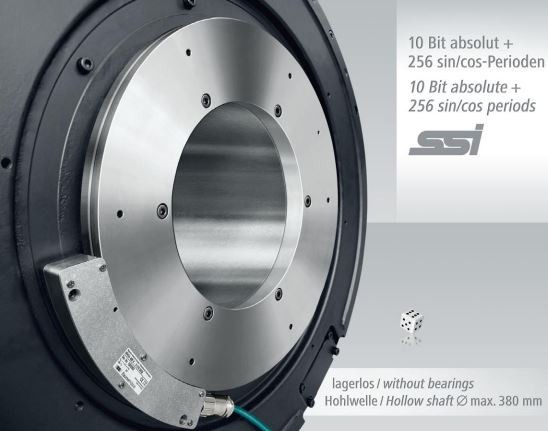

Baumer Huebner MHGA 400 encoders

Baumer Huebner is one of the European leaders in manufacturing feedback sensors to determine the speed of rotation, the position of the rotating shaft, and tracking the length of movement.

Our company maintains a wide range of tachogenerators and encoders in stock. If the feedback sensor required by the customer is not available, we are ready to offer the most suitable sensor available.

You can buy a magnetic absolute encoder Baumer Huebner MHGA 400 in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

Technical characteristics of Baumer Huebner MHGA 400 magnetic absolute encoders

• Permission: 10 bits (up to 16 bits on request);
• Maximum speed: 1000 rpm;
• Interfaces: SSI, SinCos;
• Supply voltage: 5 V (optional 4.5 - 30 V);
• Operating current (at idle): 150 mA;
• Shaft diameter: up to 380 mm;
• Protection class: IP67 /IP68 (on request IP69 K);
• Operating temperature: -20 … +85 °C.
