Kübler is one of the leading European manufacturers of equipment for measuring, converting and transmitting data, which is involved in control and positioning systems of mechanisms with rotational and linear motion. The production of absolute and incremental encoders, optical sensors, and linear measuring systems is Kubler/Kuebler.
Our company maintains a wide range of tachogenerators and encoders in stock. If the feedback sensor required by the customer is not available, we are ready to offer the most suitable sensor available.
Possible designations on the nameplate: 05.2400, with hollow shaft 05.2420.1
You can buy an incremental optical encoder Kuebler 05.2400 in our company, regarding the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

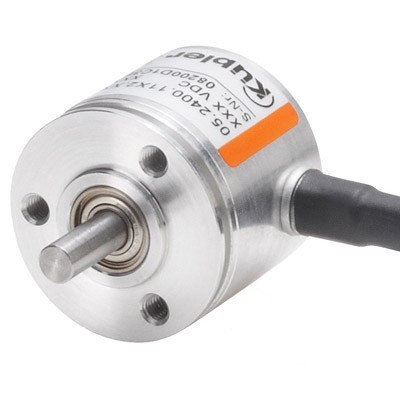

Kuebler 05.2400 Incremental optical encoder
- Number of pulses per rpm: 4, 6, 8, 10, 16, 20, 25, 36, 40, 50, 60, 80, 100, 120, 125, 180, 200, 250, 300, 360, 400, 500, 512, 1 000, 1 024;
- Maximum speed: 12000ob;
- Maximum output frequency: 160kHz;
- Output signal level: HTL, TTL;
- Output signals: A+,A -, B+,B -, Z+, Z-;
- Output signals: Push-pull (7272);
- Supply voltage: 5-24V /8-30V DC;
- Maximum load current: 50mA;
- Shaft diameter: 4x10, 5x10, 6x10мм;
- Mounting flange dimensions: 24, 28, 30mm;
- Protection class: IP65, IP50, IP64;
- Operating temperature: -20 +85°C.
