Kübler is one of the leading European manufacturers of equipment for measuring, converting and transmitting data, which is involved in control and positioning systems of mechanisms with rotational and linear motion. The production of absolute and incremental encoders, optical sensors, and linear measuring systems is Kubler/Kuebler.
Our company maintains a wide range of tachogenerators and encoders in stock. If the feedback sensor required by the customer is not available, we are ready to offer the most suitable sensor available.
Possible designations on the nameplate: 8.5805, with hollow shaft 8.5825
You can buy an incremental optical encoder Kuebler 8.5825 in our company, regarding the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

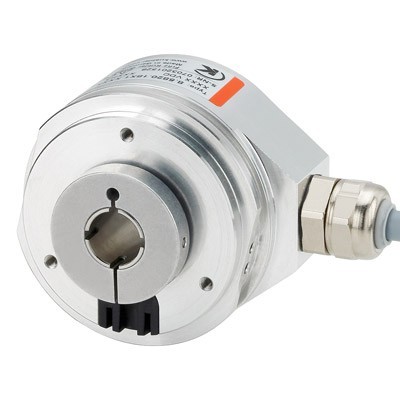

Kuebler 8.5825 Incremental optical encoder with hollow shaft
- Number of pulses per rpm: 6000, 7200,8000,8192,9000,10000,18000,36000;
- Maximum speed: 12,000 vols;
- Maximum output frequency: 800 kHz;
- Output signal level: HTL, TTL;
- Output signals: A+,A-, B+,B-,Z+,Z-;
- Output signals: Push-pull (7272) /RS422;
- Supply voltage: 10-30 V /5V DC;
- Maximum load current: 160 mA;
- Shaft diameter: 6.10 mm;
- Mounting flange dimensions: 58 mm;
- Protection class: IP65,IP40,IP66;
- Operating temperature: -20 +85°C.
