Kübler is one of the leading European manufacturers of equipment for measuring, converting and transmitting data, which is involved in control and positioning systems of mechanisms with rotational and linear motion. The production of absolute and incremental encoders, optical sensors, and linear measuring systems is Kubler/Kuebler.
Our company maintains a wide range of tachogenerators and encoders in stock. If the feedback sensor required by the customer is not available, we are ready to offer the most suitable sensor available.
Possible designations on the nameplate: without speed switch 8.H100.111, with speed switch 8.H100.112, dual encoder 8.H100.113
You can buy an incremental optical encoder Kuebler Sendix 8.H100.111 in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

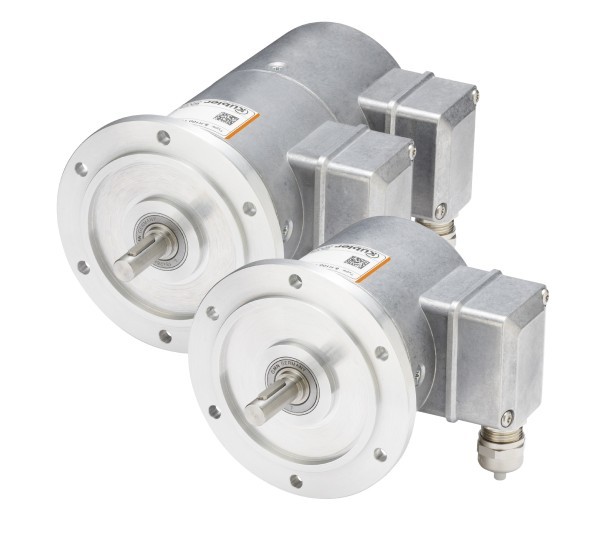

Kuebler Sendix 8.H100.111 Incremental Optical Encoder
- Number of pulses per rpm: 360,512,1000,1024,2048,2500,3600;
- Maximum speed: 6000 vol;
- Maximum output frequency: 300 kHz;
- Output signal level: HTL, TTL;
- Output signals: A+,A -, B+,B -, Z+, Z-;
- Output signals: Push-pull (7272) /RS422;
- Supply voltage: 10-30 V /5V DC;
- Maximum load current: 100 mA;
- Shaft diameter: 11x30 mm;
- Protection class: IP66;
- Operating temperature: -40 +100°C.
