Company TEKEL Instruments It is a leading European manufacturer of equipment for measuring, converting and transmitting data, which is involved in control and positioning systems of mechanisms with rotational and linear motion. Today TEKEL Instruments - this is the automated production of absolute and incremental encoders, optical sensors and linear measuring systems. Incremental production encoders TEKEL Instruments - these are solutions for various types of applications, saving time when selecting equipment, the possibility of manufacturing incremental encoders on an individual order, taking into account all technical requirements of the customer or offering the customer universal encoder models, a simple procedure for installing the zero position function of the encoder pulse, which can be installed by the customer himself.
Our company maintains a wide range of incremental optical encoders in stock. TEKEL Instruments. In the absence of an encoder required by the customer, we are ready to offer an alternative available in our warehouse, or we will bring the necessary encoder to order.

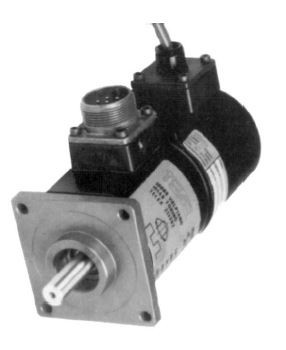

You can buy an incremental optical encoder TEKEL INSTRUMENTS TDT 40 series in our company, regarding the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of the TEKEL INSTRUMENTS incremental encoders of the TDT 40 series:
- Permission: 2700 imp/rev;
- Shaft rotation speed: from 2000 to 4000 rpm;
- Case diameter: 63.5 mm;
- Shaft diameter: from 9 to 10 mm;
- Supply voltage: from 5 to 30 V;
- Output frequency: from 50 to 100 kHz;
- Power supply current without load: up to 150 mA;
- Maximum radial shaft load: 200 N;
- Maximum axial load of the shaft: 200 N;
- Types of interfaces: LD, LD2, PP2, NPN, PNP, S, P, OC, OP;
- Moment of inertia: 50 g *cm2;
- Bearing service life: 5 x 10 ^ 9 revolutions;
- Vibration resistance: from 10 to 2,000 Hz;
- Protection classes: IP 64, IP 65, IP 66;
- Operating temperature range: temperatures: from -10 to + 70°C;
