Company TEKEL Instruments It is a leading European manufacturer of equipment for measuring, converting and transmitting data, which is involved in control and positioning systems of mechanisms with rotational and linear motion. Today TEKEL Instruments - this is the automated production of absolute encoders, optical sensors and linear measuring systems. Absolute production encoders TEKEL Instruments - these are solutions for various types of applications, saving time in the selection of equipment, the possibility of producing absolute encoders on an individual order, taking into account all technical requirements of the customer or offering the customer universal models of absolute single or multi-turn encoders.
Our company maintains a wide range of absolute encoders in stock. TEKEL Instruments. In the absence of an encoder required by the customer, we are ready to offer an alternative available in our warehouse, or we will bring the necessary encoder to order.

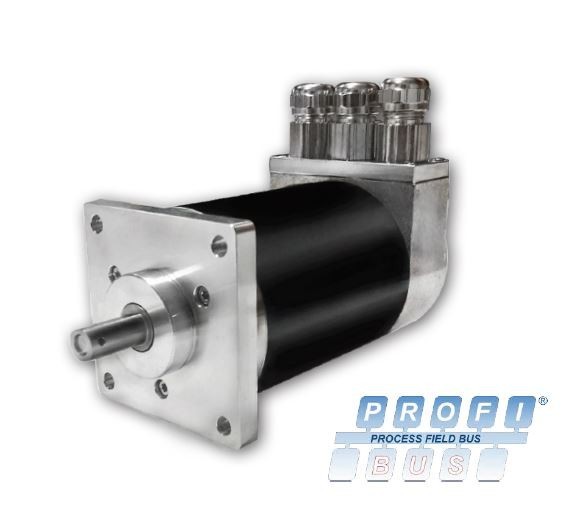

You can buy an absolute multi-turn encoder TEKEL TSM 60P-PRDP-PDNET Series Tools in our company, regarding the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical parameters of absolute multi-turn encoders of TEKEL Instruments TSM 60P-PRDP-PDNET series:
- Permission: from 4096 to 8192 imp/rev;
- Shaft rotation speed: from 2000 to 6000 rpm;
- Case diameter: 65 mm;
- Shaft diameter: from 6 to 10 mm;
- Supply voltage: from 11 to 27 V;
- Maximum permissible radial shaft load: 60 N;
- Maximum permissible axial load of the shaft: 40 N;
- Permissible angular acceleration: 10 ^ 4 rad /s2;
- Moment of inertia: 2.5 x 10 -6 kg *m2;
- Bearing service life: 5 x 10 ^ 9 revolutions;
- Exit codes: B,G, STD Gray, Binary, BCD (programmable);
- Types of interfaces: Profibus DP, DeviceNET, CAN-Bus;
- Protection class: IP 65;
- Operating temperature range: from -20 up to +70°C.
