Company TEKEL Instruments It is a leading European manufacturer of equipment for measuring, converting and transmitting data, which is involved in control and positioning systems of mechanisms with rotational and linear motion. Today TEKEL Instruments - this is the automated production of absolute encoders, optical sensors and linear measuring systems. Absolute production encoders TEKEL Instruments - these are solutions for various types of applications, saving time in the selection of equipment, the possibility of producing absolute encoders on an individual order, taking into account all technical requirements of the customer or offering the customer universal models of absolute single or multi-turn encoders.
Our company maintains a wide range of absolute encoders in stock. TEKEL Instruments. In the absence of an encoder required by the customer, we are ready to offer an alternative available in our warehouse, or we will bring the necessary encoder to order.

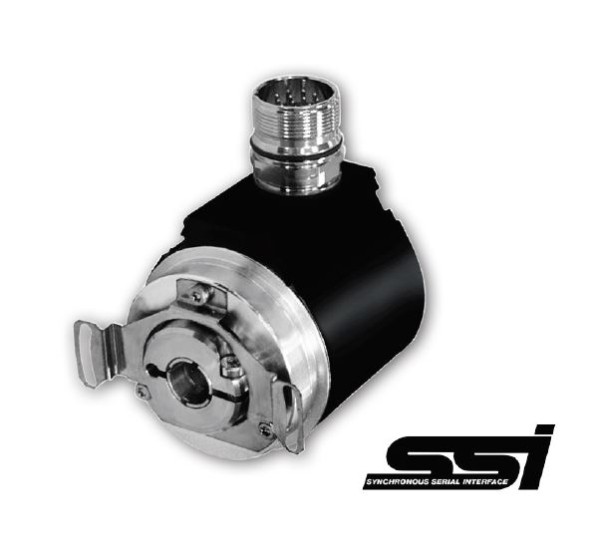

You can buy an absolute magnetic encoder TEKEL Instruments TSMW 60 P-SSI Series in our company, regarding the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical parameters of TEKEL Instruments absolute magnetic encoders of the TSMW 60 P-SSI series:
- Permission: from 4096 to 8192 imp/rev;
- Shaft rotation speed: 12000 rpm;
- Case diameter: 58 mm;
- Shaft diameter: 12 mm;
- Exit code: STD Gray, Binary (programmable);
- Supply voltage: from 8 to 30 V;
- Current consumption: 350 ma;
- Power dissipation: 3 Watts;
- Maximum permissible radial shaft load: 10 N;
- Maximum permissible axial load of the shaft: 20 N;
- Bearing service life: 3.9 x 10 ^ 10 revolutions;
- Permissible angular acceleration: 10 ^ 4 rad /s2;
- Moment of inertia: 2.5 * 10 ^ -6 kg m2;
- Protection class: IP 65;
- Operating temperature range: -20 to +70 °C.
