Company TEKEL Instruments It is a leading European manufacturer of equipment for measuring, converting and transmitting data, which is involved in control and positioning systems of mechanisms with rotational and linear motion. Today TEKEL Instruments - this is the automated production of absolute encoders, optical sensors and linear measuring systems. Absolute production encoders TEKEL Instruments - these are solutions for various types of applications, saving time when selecting equipment, the possibility of producing absolute encoders on an individual order, taking into account all technical requirements of the customer or offering the customer universal models of absolute single or multi-turn encoders, a simple procedure for installing the zero position function of the encoder pulse, which can be installed by the customer himself.
Our company maintains a wide range of absolute encoders in stock. TEKEL Instruments. In the absence of an encoder required by the customer, we are ready to offer an alternative available in our warehouse, or we will bring the necessary encoder to order.
You can buy an absolute single-turn encoder TEKEL Instruments TSTMW 42 series in our company, regarding the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

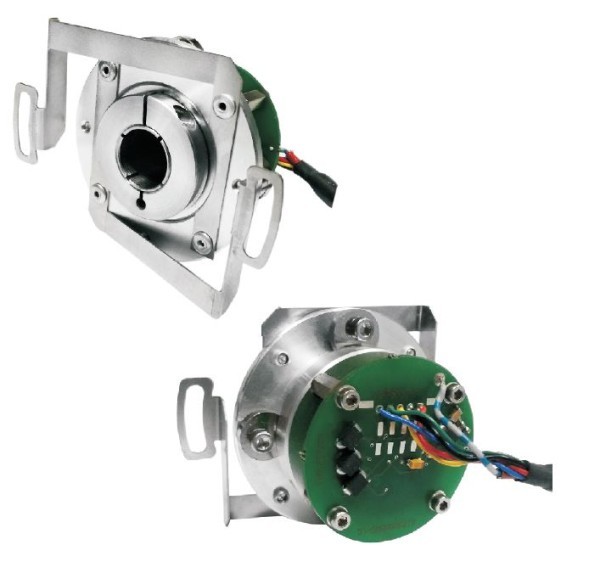

Technical parameters of TEKEL Instruments TSTMW 42 series absolute single-turn encoders:
- Permission: 4096 imp/rev;
- Shaft rotation speed: 6000 rpm;
- Case diameter: 42 mm;
- Shaft diameter: from 15 to 19 mm;
- Supply voltage: 5 In;
- Output frequency: up to 6 kHz;
- Power supply current without load: up to 50 mA;
- Maximum permissible radial shaft load: 60 N;
- Maximum permissible axial load of the shaft: 40 N;
- Moment of inertia: 40 g *cm2;
- Bearing service life: 5 x 10 ^ 9 revolutions;
- Vibration resistance: from 10 to 2000 Hz;
- Operating temperature range: -20 to +105°C.
