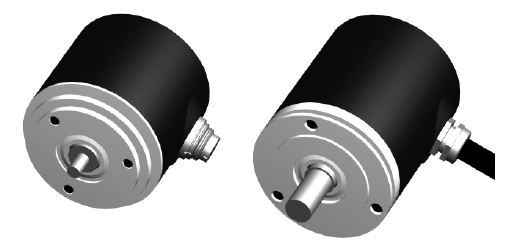

TWK-Elektronic CBE Encoders

Absolute optoelectronic angle sensors TWK-ELECTRONICS The SVE series offer a standard resolution of up to 13 bits, and are supplied in a hard case. The sensors are available in both single-turn and multi-turn versions. Flange and housing made of aluminum, stainless steel shaft, 12 mm ball bearings with O-ring, coding disk made of glass or durable plastic, GaAIA diodes, photo-transistor matrix, trigger switching circuits. The CBE series sensors are widely used in mechanical engineering.

You can buy absolute optoelectronic angle sensors TWK-ELEKTRONIK CBE series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

Technical characteristics of absolute optoelectronic angle sensors TWK-ELEKTRONIK CBE series:

• Types of interfaces: parallel or serial;
• Permission: 8192 im/about;
• Exit codes: Gray, Gray-Excess;
• Protection classes: IP 65, IP 66;
• Operating temperature range: -40° to + 85°C;
• Supply voltage: from 11 to 30 V;
• Power: 25 bits;
• Measuring range: 4096 revolutions;
• Permissible axial and radial load on the shaft: 250 N.
