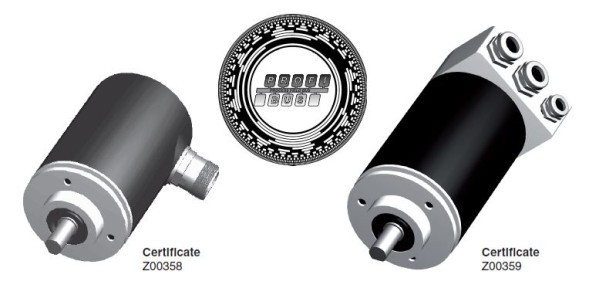

Absolute Optical encoders TWK-ELECTRONICS The CRD series have a compact and robust design, and are widely used in mechanical engineering and industry. Flange and housing made of aluminum, stainless steel shaft, 12 mm ball bearings with O-ring, coding disk made of glass or durable plastic, GaAIA diodes, photo-transistor matrix, trigger circuits for stabilizing sensor systems, SMD data switching bus. As a rule, TWK-ELEKTRONIK CRD series encoders can also be directly connected via PROFIBUS bus as auxiliary stations. The interface type of the controller used is SPC3 PROFIBUS.
Technical characteristics of TWK-ELEKTRONIK CRD series absolute optical encoders:
- Interface Type: PROFIBUS-DP;
- Transfer rate: 12 Mbps;
- Exit code: Natural Binary;
- Permission: 8192 im/about;
- Measuring range: 4096 revolutions;
- Power: 25 bits.
