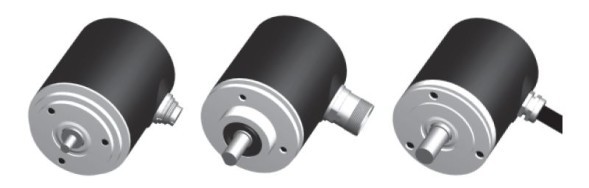

Absolute Optical encoders TWK-ELECTRONICS The CRE - series offer a standard resolution of up to 13 bits in a rigid housing with a shaft power of up to 250 Nm. These encoders are available in both single-turn and multi-turn versions. The flange and housing are made of aluminum, the shaft is made of stainless steel, ball bearings are 12 mm with an O-ring. An encoding disk made of glass or plastic resistant to deformation - GaAIA diodes, a photo-transistor matrix with trigger circuits, an SMD data control bus. The CRE 58, CRE 65, and CRE 66 models have shafts and flanges of different diameters. Due to its compact and robust design, it is widely used in mechanical engineering.
You can buy absolute optical encoders TWK-ELEKTRONIK CRE series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of the absolute optoelectronic angle encoders TWK-ELEKTRONIK CRE series:
- Permission: 8192 im/about;
- Exit codes: Gray, Natural Binary;
- Protection classes: IP 65, IP 66;
- Operating temperature range: -40° to + 85°C;
- Supply voltage: from 11 to 30 V;
- Full power: 25 bits;
- Measuring range: 4096 revolutions;
- Axial and radial load on the shaft: 250 N.
