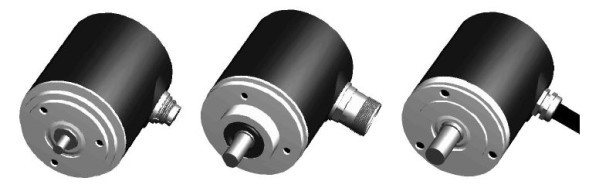

TWK-Elektronic CRF Encoder

Absolute Optical encoders TWK-ELECTRONICS The CRF series are supplied complete with PROCOD software. Flange and housing made of aluminum, stainless steel shaft, 12 mm ball bearings with an O-ring, with an encoding disk made of durable plastic - GaAIA diodes, photo-transistor matrix, data bus switch - a special multifunctional ASIC microprocessor. The CRF 58, CRF 65, CRF 66 and CRF 105 models feature a housing, shafts and flanges of various sizes.

You can buy absolute optical encoders TWK-ELEKTRONIK CRF series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

Technical characteristics of TWK-ELEKTRONIK CRF series absolute optical encoders:

• Interfaces: parallel or synchronously serial SSI or asynchronous serial ASA;
• Exit codes: Gray, Gray-Tree, BCD, Natural Binary, Nat. Bin-Tree;
• Protection classes: IP 65, IP 66;
• Supply voltage: from 11 to 26 V;
• Full power: 24 bit;
• Measuring ranges: from 1 to 4096 revolutions.
