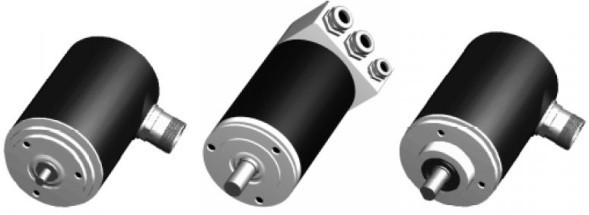

Absolute Optical encoders TWK-ELECTRONICS The CRN/C series have a compact and durable aluminum housing, a stainless steel shaft, 12 mm ball bearings with an O-ring, a coding disk made of glass or durable plastic, GaAIA diodes, a photo-transistor matrix with trigger circuits for long-term stabilization of sensor systems. The TWK-ELEKTRONIK absolute optical encoders of the CRN/C series are compatible with the CANopen interface according to the CIA DSP 406/Class 1 and Class 2 specifications. These encoders are in demand in industry and mechanical engineering.
You can buy TWK-ELEKTRONIK absolute optical encoders of the CRN/C series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK CRN/C series absolute optical encoders:
- Interface Type: CANopen;
- Device Profile: CiA DSP 406;
- Exit code: Natural Binary;
- Permission: 8192 im/about;
- Protection classes: IP 65, IP 66;
- Power: 25 bits;
- Measuring range: 4096 revolutions;
- Data transfer rate: 100 Mbps.
