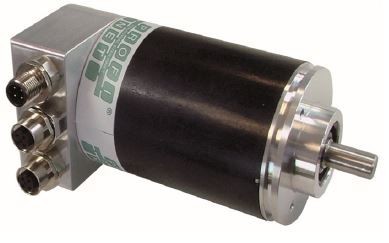

TWK-Elektronic CRT encoders

Absolute Optical encoders TWK-ELECTRONICS The CRT series have a compact and robust design, and are widely used in mechanical engineering and industry. The Profinet interface and the PNO specification are integrated into the TWK-ELEKTRONIK CRT series absolute optical encoders. Flange and housing made of aluminum, stainless steel shaft, 12 mm ball bearings with O-ring, coding disk made of glass or durable plastic, GaAIA diodes, optical matrix, trigger circuit for stabilization of sensor systems.

You can buy absolute optical encoders TWK-ELEKTRONIK CRT series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

Technical characteristics of TWK-ELEKTRONIK CRT series absolute optical encoders:

• Interface Type: PROFINET;
• Exit code: Natural Binary;
• Degrees of protection: IP 65, IP 66;
• Permissible axial and radial load on the shaft: 250 N;
• Supply voltage: from 13.5 to 30 V;
• Measuring range: 4096 revolutions;
• Permission: 8192 im/about;
• Certification according to the standards: PROFIBUS/PROFINET (PNO);
• Power: 25 bits.
