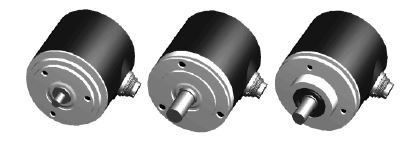

Absolute Optical encoders TWK-ELEKTRONIK DAB series They have an aluminum flange and housing, a stainless steel shaft, 12 mm ball bearings with an O-ring, an encoding disk made of glass or durable plastic, GaAIA diodes, a photo-transistor matrix, a data switching bus, a special multifunctional ASIC microprocessor and a 12-bit D/A converter. Absolute optical encoders of such series as: DAB 58, DAB 65, DAB 66 have different sizes - shaft, flange and housing, as well as different number and type of electrical contacts. The DAB encoders were developed based on the single-turn encoders of the CBE series. They are distinguished by an electro-optical sensor system with digital signal processing and a D/A converter that is included in the package.
Technical characteristics of the TWK-ELEKTRONIK DAB series absolute optical encoders:
- Types of signal outputs: calibrated, analog;
- Supply voltage: from 20 to 26 V;
- Types of signals: 4-20 mA, 10 V;
- Minimum measurement range: 30°;
- Maximum measuring range: 360°;
- Type of sensor system: contactless, electro-optical;
- The type of converter used: 12-bit D/A.
