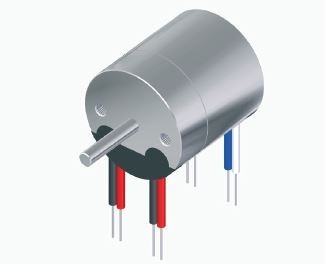

TWK-Elektronic GIO 12 J Encoders

Pulsed optical sensors TWK-ELEKTRONIK series GIO 12 J they have a resolution from 4 to 5000 pulses per revolution. The design of the sensors consists of a brass body, a nickel-plated stainless steel shaft with a diameter of 1.5 mm, a double ball bearing, a metal pulse disk, the disk itself, LED indicators, and a phototransistor as a light receiver.

You can buy TWK-ELEKTRONIK series GIO 12J pulsed optoelectronic generators in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

Technical characteristics of TWK-ELEKTRONIK series GIO 12J pulse optoelectronic sensors:
Case diameter: 12 mm;

• Permission: from 4 to 5000 im/rev;
• Number of pulses: 125;
• Voltage: 20 In;
• Pulse frequency: 10 kHz.
