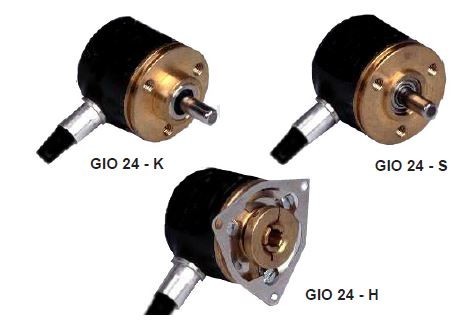

Pulsed optical sensors TWK-ELEKTRONIK G seriesI 24 they have a resolution from 4 to 5000 pulses per revolution. These sensors have a compact size and are supplied with both hollow and solid shafts. They also have short circuit protection. The sensor models and series are marked depending on the type of shaft and flange: the H series has a hollow shaft, the K series has a clamping flange, and the S series is supplied with a synchronous flange. The sensor design includes brass flanges, stainless steel shafts, ball bearings with an O-ring, GaAIA diodes, a photo-transistor matrix with trigger circuits for long-term stabilization.
You can buy pulsed optoelectronic generators TWK-ELEKTRONIK GIO 24 series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK series GIO 24 pulse optoelectronic sensors:
- Permissible axial and radial load on the shaft: 20 N:
- Shaft diameter: 4 mm;
- Operating temperature range: -40 to +85° C;
- Type of sensor system: contactless;
- Permission: from 4 to 5000 im/rev;
- Protection classes: IP 64, IP 65;
- Voltage: from 4.5 to 30 V.
