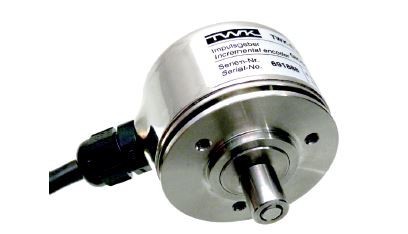

TWK-Elektronic GIO 50 encoders

Pulsed optical sensors TWK-ELEKTRONIK series GIO 50 They have a resolution from 4 to 5000 pulses per revolution, are made of stainless steel, also have a non-contact sensor system, and are protected from short circuit. The design of the TWK-ELEKTRONIK series GIO 50 pulse optical sensors consists of a flange, a stainless steel housing and shaft, ball bearings with an O-ring, GaAIA diodes, a photo-transistor matrix with a trigger circuit for long-term stabilization.

You can buy pulsed optoelectronic generators TWK-ELEKTRONIK GIO 50 series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.

Technical characteristics of TWK-ELEKTRONIK series GIO 50 pulsed optoelectronic generators:

• Permissible axial and radial load on the shaft: 20 N;
• Shaft diameter: 10 mm;
• Operating temperature range: -40° to +85° C;
• Type of sensor system: contactless;
• Permission: from 4 to 5000 im/rev;
• Protection class: IP 67;
• Voltage: from 4.5 to 30 V.
