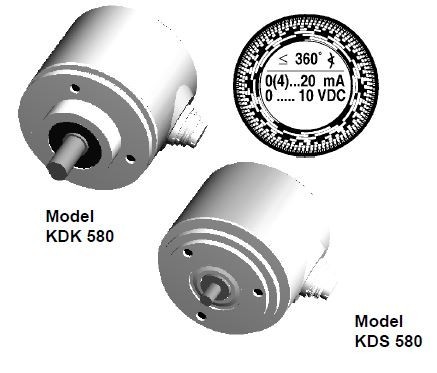

Absolute Optical encoders TWK-ELEKTRONIK KDK series They have a high resolution of up to 16 bits (65.536 clock cycles per revolution) due to their compact size. The measurement range in the single-turn version is from 0 to 360 °, and 4096 revolutions in the multi-turn version. The design of the TWK-ELEKTRONIK KDK series absolute optical encoders consists of a flange, an aluminum housing, a stainless steel shaft, ball bearings with an O-ring, an encoding disk made of glass or durable plastic, GaAIA diodes, a photo-transistor matrix, and a data switching bus, a 12-bit D/A converter.
You can buy absolute optical encoders TWK-ELEKTRONIK KDK series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical Characteristics of TWK-ELEKTRONIK KDK series absolute optical encoders:
- Type of output signal: calibrated, analog;
- Type of sensor system: contactless, electro-optical;
- Minimum measurement range: from 0 to 15°;
- Maximum measuring range: from 0 to 360°;
- Type of converter: 12-bit D/A;
- Protection class: IP 66.
