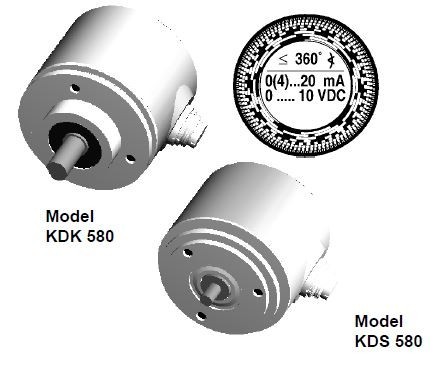

Absolute Optical encoders Electrical and Electrical Engineering Manufacturing Company Due to their compact size, they are characterized by their high resolution up to 16 bits (65.536 clock cycles per revolution). The measurement range in the single-turn version is from 0 to 360 °, and 4096 revolutions in the multi-turn version. The design of the TWK-ELEKTRONIK KDS series encoders consists of a flange, an aluminum housing, a stainless steel shaft, ball bearings with an O-ring, an encoding disk made of glass or durable plastic, GaAIA diodes, a photo-transistor matrix, a data switching bus, a 12-bit D/A converter.
You can buy absolute optical encoders TWK-ELEKTRONIK KDS series in our company, for the selection of equipment, please contact our specialists by phone.: saluteh or e-mail: saluteh.
Technical characteristics of TWK-ELEKTRONIK KDS series absolute optical encoders:
- Type of signal output: calibrated, analog;
- Type of sensor system: contactless electro-optical;
- Minimum measurement range: from 0 to 15°;
- Maximum measuring range: from 0 to 360°;
- Type of converter: 12-bit D/A;
- Type of signal output: 20 mA, ± 10 V;
- Protection class: IP 65.
