Absolute Optical encoders TWK-ELEKTRONIK kre series They are assembled in a compact and durable aluminum housing, as a rule, these encoders are used in instrument engineering and mechanical engineering. The absolute optical encoders of the TWK-ELEKTRONIK KRE series have a high resolution of up to 16 bits. The measurement range in the single-turn version is from 0 to 360 °, and 4096 revolutions in the multi-turn version. The design of the TWK-ELEKTRONIK encoders of the KRE series consists of a flange, a stainless steel shaft, ball bearings with an O-ring, an encoding disk made of glass or durable plastic, GaAIA diodes, a photo-transistor matrix with trigger circuits, and a data switching bus.
Technical characteristics of the absolute optical encoders TWK-ELEKTRONIK KRE series:
- Encoder Type: multi-turn;
- Interface Type: consistent;
- Exit codes: Gray, Natural Binary;
- Permission: 8192 im/about;
- Measuring range: 4096 revolutions;
- Protection classes: IP 64, IP 66;

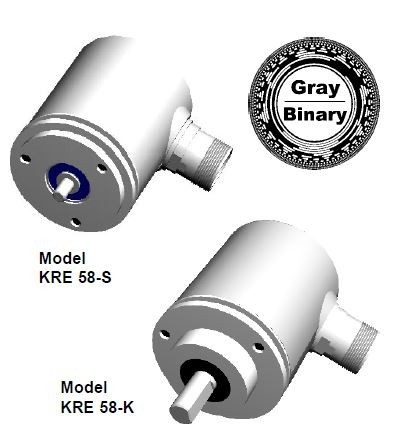

- Flange type of the "S" model: synchronous;
- Flange type of the "K" model: clamping;
- Power: 28 bits.
