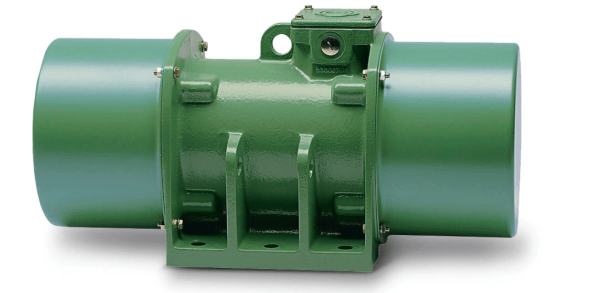

Vibrator pad F 1400-6-7.0 FRIEDRICH

F 1400-6-7.0 FRIEDRICH vibration motor

F-Type vibration motors
Built-in cylindrical roller bearings with high load capacity and increased bearing clearance with factory lubrication with special lubrication for the entire service life. Lubrication with all sources of errors, such as dirty lubrication nipples, too much, too little, or improper lubrication for lubrication. By using our maintenance-free vibration motors, you significantly reduce maintenance costs.

General technical conditions

• Power supply: Voltage from 115 V to 690 V is available in 50 Hz and 60 Hz.
• Protection: IP 66
• Thermal class: F (155 °C) according to DIN EN 60034-1
• Tropical insulation: standard
• Electrical connection: Use a highly flexible cable for heavy mechanical loads. For example: H07RN-F or A07RN-F according to DIN VDE 0282.
• Permissible ambient temperature: -20 to +40 ° C.
