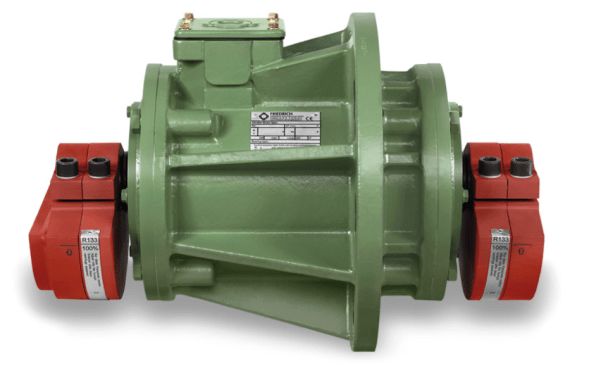

FRIEDRICH FF-Type friction vibration motors
Our flanged vibration motors have been built without maintenance for over 35 years with the best success. Built-in cylindrical roller bearings with high load capacity and increased bearing clearance with factory lubrication with special lubrication for the entire service life. Possible errors such as B. contaminated lubrication nipples, incorrect dosage or improper lubrication are excluded.
By using our maintenance-free flange vibration motors, you significantly reduce maintenance costs.
General technical conditions
Power supply:Voltage from 115 V to 690 V is available in 50 Hz and 60 Hz.
Protection:IP 54
Thermal class:F (155 ° C) according to DIN EN 60034-1
Tropical isolation:standard
Electrical connection:Use a highly flexible cable for heavy mechanical loads. For example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:From -30 to +40 ° C
Operating mode:Continuous operation (S1) and intermittent operation at 100% centrifugal force.
montage:It can be mounted in any position without restrictions.
Coating color:The standard in RAL 6011. Other colors are available on request.
Type of code:
The type code is read as follows:
The first block number=operating torque in kgf
(Operating torque=2 x static torque)
This is followed by a hyphen followed by the pole number.
(4=1460 min-1, 6=980 min-1 (at a network frequency of 50 Hz)).
The size is indicated after the second hyphen.
