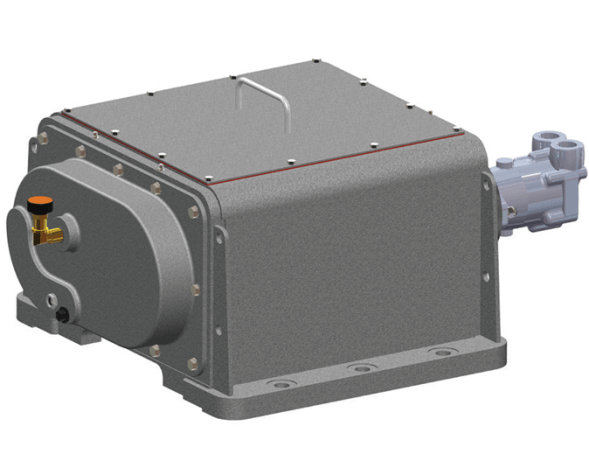

Pad vibrators HVL from the company Invicta They are designed to operate from a hydraulic drive and are characterized by the most compact and versatile design. They are used in various industry areas as part of the drive unit of stationary and mobile vibration equipment. The unique design with a low profile and strength level is comparable to larger installations. Installation with any slope in the range from zero to ninety degrees. An excellent solution for conditions of limited space for accommodation.
Fully enclosed modular design, the design includes two parallel independent shafts with opposite rotation mounted on four roller bearings, a block of mechanical gears to ensure linear motion and avoid slippage. It is powered by a single hydraulic motor connected to the outside. Up to four possible weight loads to obtain different output power values, the adjustment is easy to carry out even in the field.
Technical characteristics of Invicta HVL hydraulic vibration exciters
- Centrifugal (driving) force: 60087 - 196965 N;
- Static moment: 1110 - 3642 kg•cm;
- Rotation speed: 1000 rpm;
- Starting moment: 54 - 175 Nm.
Standard sizes of Invicta HVL vibrators (1000 rpm)
Type vibrator | Installation goods | Centrifugal power, N | Static moment, kg·cm | The launcher moment, Nm |
HVL 45 -85/1000 | 1 | 60087 | 1110 | 54 |
HVL 45 -85/1000 | 2 | 70361 | 1301 | 64 |
HVL 45 -85/1000 | 3 | 73025 | 1350 | 66 |
HVL 45 -85/1000 | 4 | 83927 | 1551 | 76 |
HVL 60 -200/1000 | 1 | 134005 | 2478 | 120 |
HVL 60 -200/1000 | 2 | 157118 | 2905 | 140 |
HVL 60 -200/1000 | 3 | 171741 | 3176 | 153 |
HVL 60 -200/1000 | 4 | 196965 | 3642 | 175 |
You can buy Invicta HVL hydraulic vibrators, find out the price and more information about the product by contacting our specialists.
