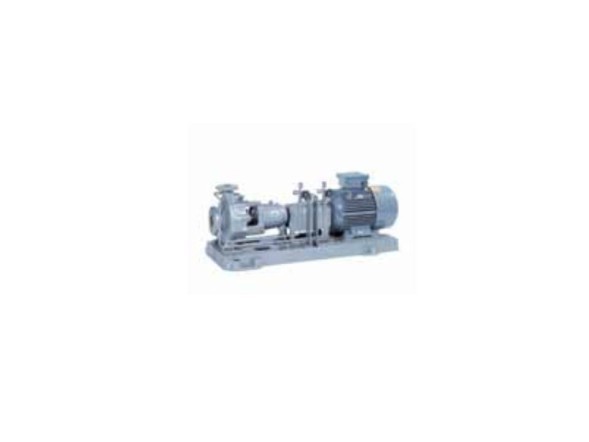

Description: Horizontal centrifugal pump with a spiral body having a transverse connector, in a process design, with a radial impeller, single-flow, single-stage, according to EN 22 858 /ISO 2858 /ISO 5199. Certification according to the standard series by the TV technical supervision authority in accordance with the Specifications for pressure vessels (TRD) is possible. Execution according to ATEX.
Scope of application: for pumping hot water and oil coolant in pipeline or tank systems, in particular for medium and large water heating installations, boilers with forced circulation, district heating, etc.
DN ____________ 150 - 400
Q [m3/h] _________ up to 4150
H [m] _____________ up to 185
p [bar] ____________ up to 40
T [°C] _ _________ up to +400
Specifications for 50 Hz
