Complete sewage pumping units

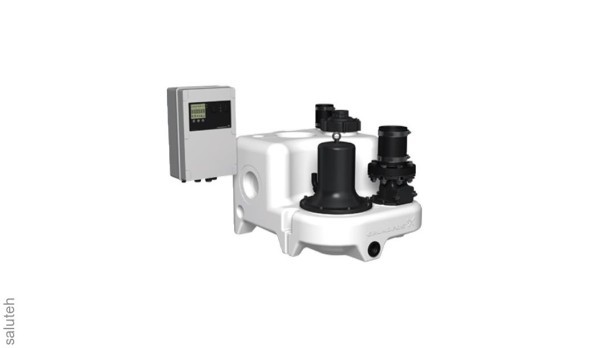

Multilift is supplied fully ready for installation, consists of a fully tank with a pump and a submersible electric motor, a check valve, an adapter with a flexible DN100 fitting installed on the tank and a controller incl. level sensor.
The built-in tank has all the necessary connections for connection to the intake pipe, ventilation pipe and manual diaphragm pump (accessory).
The tank contains 7 inlet pipes around the perimeter. On the back side there is a DN100 inlet pipe with a patented disc inlet for stepless connection of all pipelines (in the center) from 180 to 315 mm. DN100 and DN50 nozzles on each side. DN150, DN50 on the top of the tank.
Multilift is not susceptible to corrosion, as well as sealed and sediment at the bottom is minimal.
The Vortex impeller pump with submersible electric motors has an oil chamber for pouring oil between two shaft seals. Direction of rotation
